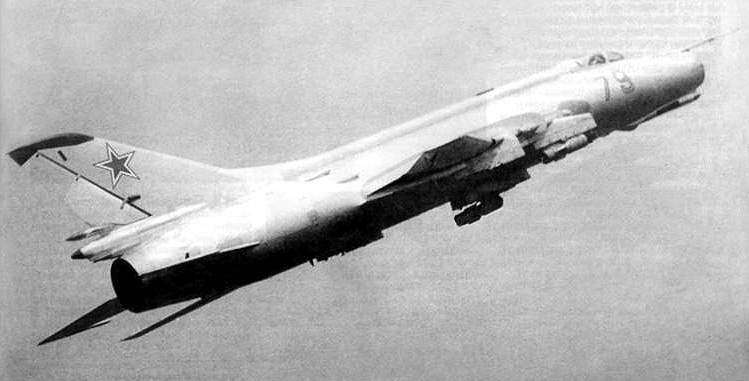

General data: | |
---|---|
Type: Attack | Crew: 1 |
Min Speed: 350 kt | Max Speed: 920 kt |
Wingspan: 13.7 m | Height: 5.1 m |
Length: 17.3 m | Max Payload: 0 kg |
Empty Weight: 10880 kg | Max Weight: 19500 kg |
Operator: Frontal Aviation [VVS] | Commissioned: 1981 |
Propulsion: 1x AL-21F-3 |
Sensors / EW: |
---|
SPO-10 Sirena-3M - ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
Weapons / Loadouts: |
---|
AA-2a Atoll [R-3S] -
(1963) Guided Weapon Air Max: 7.4 km. |
820 liter Drop Tank -
Drop Tank |
AA-8 Aphid [R-60] -
(1974) Guided Weapon Air Max: 9.3 km. |

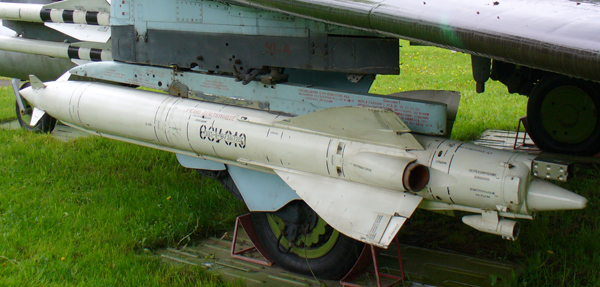

AS-7 Kerry [Kh-23] -
(1971) Guided Weapon Surface Max: 10 km. Land Max: 10 km. |

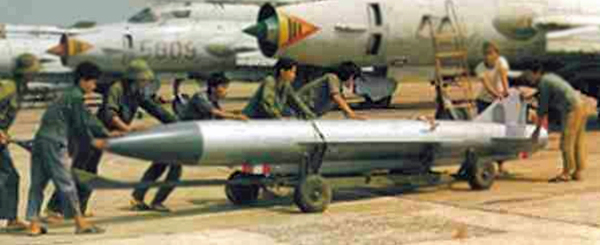

AS-9 Kyle [Kh-28] -
(1974) Guided Weapon Surface Max: 120.4 km. Land Max: 120.4 km. |
Metel [Emitter Locator] -
(AS-9, Su-17) Sensor Pod |

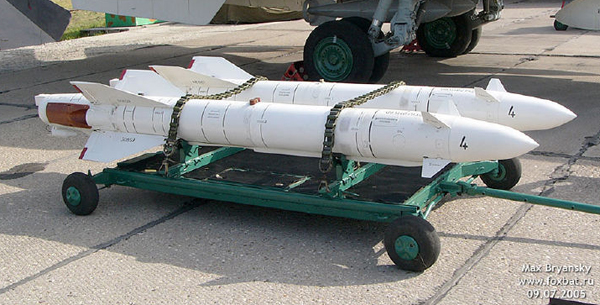

AS-10 Karen [Kh-25MR] -
(Command Guidance) Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
RBK-500-BetAB CB [12 x BetAB-20 Anti-Runway Penetrator Bomblets] -
Bomb Land Max: 1.9 km. |
FAB-100M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
FAB-250M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
FAB-250M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
FAB-500M-54 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
FAB-500M-62 GPB -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
OFAB-100-120 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
OFAB-250-270 Frag -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
RBK-250-PTAB CB [30 x PTAB-2.5 Anti-Tank Bomblets] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
RBK-500-PTAB [268 x PTAB-1M Anti-Tank Bomblets] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
S-24B 240mm Rocket -
(V-24A Fuze) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
S-5K 57mm Rocket -
(OOS ~2014, Superseded by S-8) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
RBK-500-ZAB [117 x ZAB-2.5SM Incendiary] -
Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
RN-28 Tactical Bomb [1kT Nuclear] -
(Russia, 8U49, Su-24) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
RN-40 Tactical Bomb [30kT Nuclear] -
(Russia, 8U-64, MiG-23, MiG-27, MiG-29 (9-12)) Bomb Surface Max: 5.6 km. Land Max: 5.6 km. |
S-25O 266mm Rocket -
(1980) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
