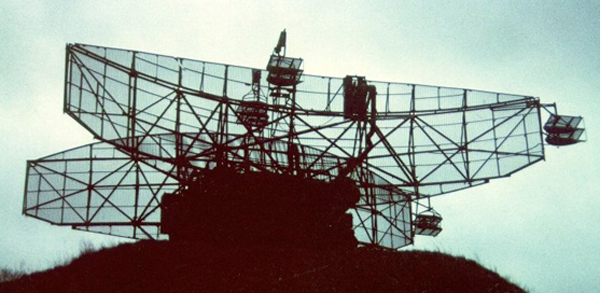

OVERVIEW: The Kabina 66/5N87 P-80 radar (NATO name: BACK NET) is a mobile 2-D early warning/Ground Control Intercept (GCI) radar operating in the "E/F" Band.
DETAILS: The P-80 is a van-mounted mobile radar. Weapons systems associated with the P-80 include the SA-5 GAMMON.
Specifications:
Frequency: 1.98-2.45 GHz (E/F Band)
Power output: 32 kW (average), 1.5 MW (peak) (some sources report up to 2.4 MW peak power)
PRF: 60-1460 Hz
Range Resolution: 1.7 km (range)/1 degree (azimuth)
On/Off time: unknown
Detection Ranges, 1 m2 RCS target
200 m alt: 50 km
400 m alt: 200 km
6000m alt.: 310 km
Max range: 450 km (380 km for fighter sized target)
NOTES: IOC 1962.
SOURCES: "Radar Basics." Grundlagen Der Radartechnik. Accessed March 15, 2015. http://www.radartutorial.eu/19.kartei/karte901.en.html ; http://users.sch.gr/dlabaditis/TH/radars/index.htm ; "S-200 (missile)." Wikipedia, the Free Encyclopedia. Accessed March 15, 2015. http://en.wikipedia.org/wiki/S-200_(missile) ; "Die Seiten Der Funktechnischen Truppen Der NVA." Die Seiten Der Funktechnischen Truppen Der NVA. Accessed March 15, 2015. http://www.nva-futt.de/index.html?http://www.nva-futt.de/besonderheiten/technik/tta/k-66.html.
