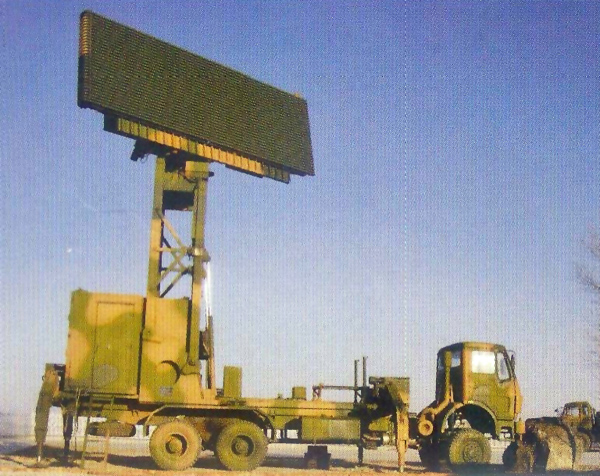

OVERVIEW: The JY-11B is a self-propelled, low-altitude, 3D air surveillance radar, operating in the E/F-band.
DETAILS: The JY-11B employs �reconfigurable� transmission beams and Digital Beam Forming (DBF) for reception to provide low-altitude and good sea-surface detection, with modern processing techniques including AMTI and pulse Doppler sampling. Unlike the JY-11, this is not a dismountable system but the antenna can be raised on a hydraulically controlled tower to improve the system�s low altitude coverage, very similar in concept and design to the German TRM-S system, or ByeloRussian Vostok E. It also features a high degree of automation, giving it both a fast reaction and standalone capability. It can also provide target designation services to weapon systems.
Frequency: 2-4 GHz (E/F Band (NATO), S Band (IEEE))) Power output: unknown kW(average); unknown MW (peak) PRF: unknown Range Resolution: 50 m (range), 0.3 degrees azimuth On/Off time: unknown Deploy/Stow Time 10 min / 10 min
Detection Range: 80% Pd, 2m2 RCS: tgt alt. 100m: km tgt alt. 18000m: km Max Range: >260 km
Source: Air Power Australia. "PLA Air Defence Radars." Accessed December 1, 2013. http://www.ausairpower.net/APA-PLA-IADS-Radars.html#mozTocId737524 ; "World Defense Review: JY-11B High-mobility Low-altitude 3D Air Surveillance Radar CETC International - China." World Defense Review. Accessed March 28, 2015. http://worlddefensereview.blogspot.com/2012/07/jy-11b-high-mobility-low-altitude-3d.html ; "Chinese Self-Propelled JY-11B 3D Electronically Scanned Hunter-1 Radar." Chinese Military Review. Accessed March 28, 2015. http://chinesemilitaryreview.blogspot.com/2012/02/chinese-self-propelled-jy-11b-3d.html.
