| General data: | |
|---|---|

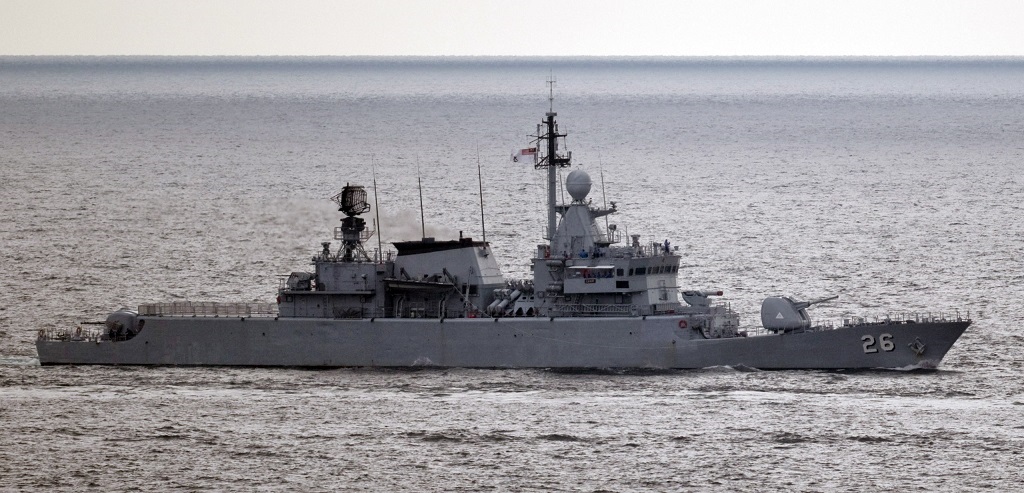

| Type: FFL - Corvette | Max Speed: 28 kt |
| Crew: 124 | Length: 97.3 m |
| Beam: 11.3 m | Draft: 3.5 m |
| Displacement Full: 1900 t | Displacement: 1690 t |
| Operator: Navy | Commissioned: 2006 |
| Propulsion: 4x MTU 20V 1163 TB92 Diesels |
| Sensors / EW: |
|---|
| DSQS-21C [CSU 83] - (FFL, Assoc w ASO 84) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search & Track Max Range: 29.6 km |
| WM.22 - (Gun FCS, Larger Ships) Radar Radar, FCR, Weapon Director Max Range: 59.3 km |
| DA.08/1 - (Single Beam, PFN 513, AN/SPQ-50) Radar Radar, Air & Surface Search, 2D Medium-Range Max Range: 185.2 km |
| RAMSES [RWR] - (Scimitar) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| RAMSES [ECM] - (Scimitar) ECM OECM & DECM, Offensive & Defensive ECM Max Range: 0 km |
| Telegon [Generic] - (For ships with unspecified Telegon gear) ESM HF/DF Max Range: 926 km |
| LIOD Mk.1 [Optronic] - (Group) Visual Visual, Weapon Director TV Camera Max Range: 74.1 km |
| LIOD Mk.1 [IR] - (Group) Infrared Infrared, Weapon Director Camera Max Range: 74.1 km |
| LIOD Mk.1 [Laser Rangefinder] - (Group) Laser Rangefinder Laser Rangefinder for Weapon Director Max Range: 0 km |
| Decca 1226 - (Group) Radar Radar, Surface Search & Navigation Max Range: 88.9 km |
| DR 3000S2 - (ARBR 21) ESM ELINT w/ OTH Targeting Max Range: 926 km |
| ASO 84-5 [CSU 83] - (Assoc w DSQS-21C) VDS, Active/Passive Sonar VDS, Active/Passive Variable Depth Sonar Max Range: 29.6 km |
| Weapons: |
|---|
| Bofors 375mm ASW Rocket Salvo [2 rnds] -
Rocket Subsurface Max: 3.7 km. |
| 57mm/70 Bofors Mk1 HCER Burst [4 rnds] -
Gun Surface Max: 8.3 km. Land Max: 8.3 km. |
| 57mm/70 Bofors Mk1 HE Burst [4 rnds] -
Gun Air Max: 2.2 km. Surface Max: 8.3 km. Land Max: 8.3 km. |
| DAGAIE Mk2 LIR Flare -
Decoy (Expendable) Surface Max: 1.9 km. |
| DAGAIE Mk2 LEM Chaff -
Decoy (Expendable) Surface Max: 1.9 km. |
| 100mm/55 Model 1968 PFHE -
Gun Air Max: 2.8 km. Surface Max: 13 km. Land Max: 13 km. |
| 100mm/55 Model 1968 HE -
Gun Surface Max: 13 km. Land Max: 13 km. |
| MM.38 Exocet Blk I -
(1976) Guided Weapon Surface Max: 42.6 km. |
| 30mm/75 Twin Oerlikon APDS Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km. |
| 30mm/75 Twin Oerlikon HE Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km. |
