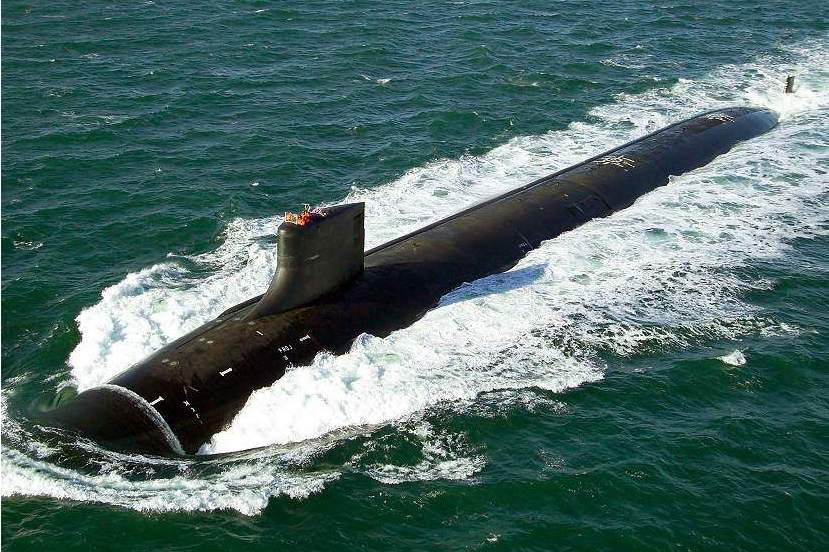

General data:
Type: SSN - Nuclear Powered Attack Submarine Max Depth: -450 m
Commissioned: 2005 Length: 137.6 m
Beam: 12.9 m Draft: 10.7 m
Crew: 134 Displacement: 10580 t
Propulsion: 1x S6W Nuclear Reactor Max Speed: 35 kt
Sensors / EW:
AN/WLR-9B - (AN/BLR-14, Sonar Warning Receiver) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept & Torpedo Warning
Max Range: 27.8 km
AN/BPS-16 - (1996) Radar
Radar, Surface Search, Medium-Range
Max Range: 166.7 km
AN/TB-29 - (1996, 10x Produced) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Thin Line Towed Array Sonar System
Max Range: 185.2 km
AN/TB-16D - (1996, 2600ft Fat-Line) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Fat Line Towed Array Sonar System
Max Range: 129.6 km
AN/BQS-24 MIDAS - (1996, 2600ft Fat-Line) Hull Sonar, Active-Only
Hull Sonar, Active-Only Under-Ice Navigation and Mine & Obstacle Avoidance
Max Range: 1.1 km
AN/BQG-5A WAA [BSY-2] - (Seawolf) Hull Sonar, Passive-Only
Hull Sonar, Passive-Only Ranging Flank Array Search & Track
Max Range: 129.6 km
AN/BQQ-10 [ARCI(V)5] - (Seawolf) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 129.6 km
AN/BLQ-10(V)3 - (Seawolf) ESM
SIGINT (ELINT & COMINT) w/ OTH Targeting
Max Range: 926 km
Type 18 Periscope Optical Component - (Baseline, 1970s+) Visual
Visual, Surveillance Periscope
Max Range: 41.7 km
Generic Submarine Periscope, LLTV - (1980s/1990s, Gen 2, 1.5x/4x Zoom) Visual
LLTV, Surveillance & Navigation Camera
Max Range: 41.7 km
Weapons:
SEAL Commando - (Surface & Submarine) Troops
UGM-109C Tomahawk Blk III TLAM - (1994, TT) Guided Weapon
Land Max: 1666.8 km.
UGM-109D Tomahawk Blk III TLAM - (1996, TT) Guided Weapon
Land Max: 1296.4 km.
Mk48 Mod 6 ADCAP MOD - (2005) Torpedo
Surface Max: 38.9 km. Subsurface Max: 38.9 km.
ADC Mk2 Mod 1 Torpedo Decoy - (1991, 6-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
ADC Mk3 Mod 1 Torpedo Countermeasure - (2004, 6-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
ADC Mk4 Mod 1 Sonar Jammer - (2004, 6-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
ADC Mk2 Mod 0 Torpedo Decoy - (1979, 3-inch) Decoy (Expendable)
Subsurface Max: 1.9 km.
