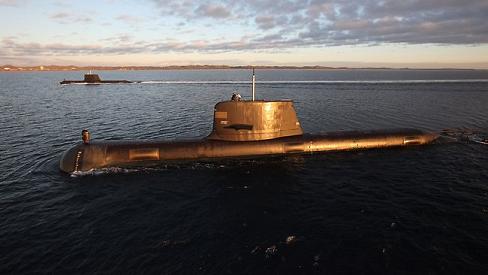

General data:
Type: SSK - Hunter-Killer Submarine Max Depth: -300 m
Commissioned: 1996 Length: 77.4 m
Beam: 7.8 m Draft: 7.0 m
Crew: 42 Displacement: 3051 t
Propulsion: 3x Garden Island-Hedemora HV V18b/15Ub (VB210) Diesels Max Speed: 15 kt
Sensors / EW:
Kariwara COLTAS - (Collins) TASS, Passive-Only Towed Array Sonar System
TASS, Passive-Only Thin Line Towed Array Sonar System
Max Range: 74.1 km
Type 1007 - (1988, KH 1007) Radar
Radar, Surface Search & Navigation
Max Range: 177.8 km
TSM 2253 PVDF - (DMUX 80) Hull Sonar, Passive-Only
Hull Sonar, Passive-Only Ranging Flank Array Search & Track
Max Range: 74.1 km
TSM 2233M Scylla [DSUV 2H + DUUA 2D] - (DMUX 20 System = DSUV 2H + DUUA 2D) Hull Sonar, Active/Passive
Hull Sonar, Active/Passive Search & Track
Max Range: 74.1 km
Manta XL - (Sceptre XL, BLQ-355) ESM
ELINT
Max Range: 926 km
TSM 2255 - (DUUX 5, Assoc w Eledone & Sculla) Hull Sonar, Passive-Only
Hull Sonar, Passive-Only Ranging Flank Array Search & Track
Max Range: 74.1 km
SATEPS - (Australia, Collins) Acoustic Intercept (Active Sonar Warning)
Acoustic Intercept
Max Range: 66.7 km
CK043 / CH093 LLTV Component - (1.5x/8x Zoom) Visual
LLTV, Surveillance & Navigation Camera
Max Range: 41.7 km
CK043 / CH093 EO Component - (1990s, 1.5x/12x Zoom) Visual
Visual, Surveillance Periscope
Max Range: 41.7 km
CK043 / CH093 IR Component - (1x/4x Zoom) Infrared
Infrared, Surveillance & Navigation Camera
Max Range: 27.8 km
Weapons:
Generic Torpedo Decoy - (1990s) Decoy (Expendable)
Subsurface Max: 1.9 km.
UGM-84D Harpoon IC - (1986) Guided Weapon
Surface Max: 138.9 km.
Mk48 Mod 7 ADCAP CBASS - (2008, Shallow Water) Torpedo
Surface Max: 38.9 km. Subsurface Max: 38.9 km.
