| General data: | |
|---|---|
| Type: SS - Attack/Fleet Submarine | Max Depth: -250 m |
| Commissioned: 2000 | Length: 76 m |
| Beam: 7.6 m | Draft: 5.1 m |
| Crew: 55 | Displacement: 1584 t |
| Propulsion: Electric Motors | Max Speed: 18 kt |
| Sensors / EW: |
|---|
| Generic Submarine Periscope, Optical - (1990s, 1.5x/12x Zoom) Visual Visual, Surveillance Periscope Max Range: 41.7 km |
| Generic Submarine Periscope, LLTV - (1980s/1990s, Gen 2, 1.5x/4x Zoom) Visual LLTV, Surveillance & Navigation Camera Max Range: 41.7 km |
| Snoop Tray 2 [MRK-50E Kaskad] - (Export) Radar Radar, Surface Search, Short-Range Max Range: 37 km |
| China SQC-1 [DSUV 2H + DUUA 2D] - (DSUV 22 System, Han) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search & Track Max Range: 74.1 km |
| China SQG-2B [DUUX 5] - (Han) Hull Sonar, Passive-Only Hull Sonar, Passive-Only Ranging Flank Array Search & Track Max Range: 74.1 km |
| DUUX 5 Fenelon [TSM 2255] - (SQB-2) Hull Sonar, Passive-Only Hull Sonar, Passive-Only Ranging Flank Array Search & Track Max Range: 74.1 km |
| Acoustic Intercept [China H/SQZ-D] - (Type-033) Acoustic Intercept (Active Sonar Warning) Acoustic Intercept Max Range: 27.8 km |
| China Type 921-A Golf Ball - (Submarine, Stop Light) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Weapons: |
|---|

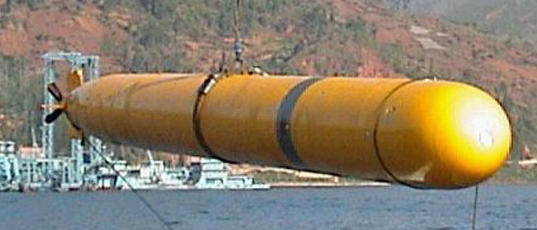

| Yu-4B -
(1989, ASuW, Submarine) Torpedo Surface Max: 7.4 km. |
| Yu-5 -
(1999, ASW, Submarine) Torpedo Surface Max: 7.4 km. Subsurface Max: 7.4 km. |
| YJ-82 [YJ-802Q] -
(1995) Guided Weapon Surface Max: 129.6 km. |
| Generic Acoustic Decoy -
(2000s, Noisemaker / Bubble Screen) Decoy (Expendable) Subsurface Max: 1.9 km. |
