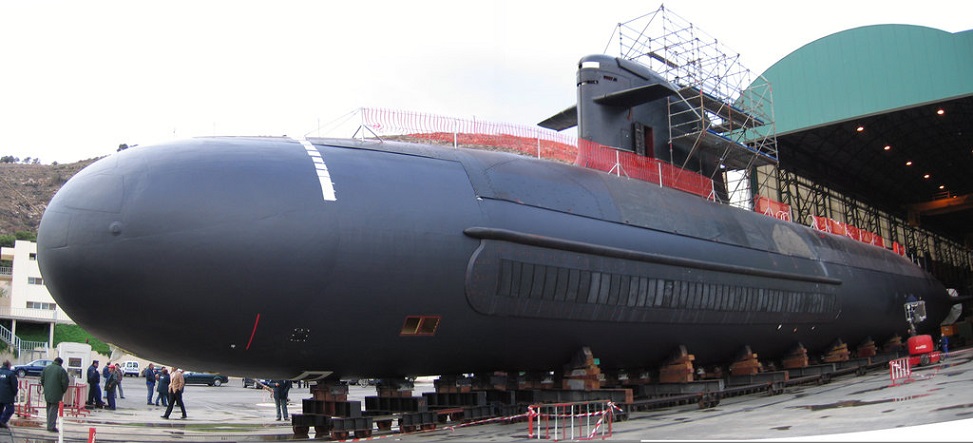

S-81 Isaac Peral [S-80A] - 2022, - First Unit S-82 Narciso Manturiol, Delays in Delivery
| General data: | |
|---|---|
| Type: SS - Attack/Fleet Submarine | Max Depth: -250 m |
| Commissioned: 2022 | Length: 71.1 m |
| Beam: 7.3 m | Draft: 6.2 m |
| Crew: 32 | Displacement: 2200 t |
| Propulsion: AIP Motor | Max Speed: 20 kt |
| Sensors / EW: |
|---|
| Generic ESM [Advanced] - (1990s, Precise Emitter ID) ESM ELINT Max Range: 926 km |
| EDO xxx Flank - (S-80A Suite) Hull Sonar, Passive-Only Hull Sonar, Passive-Only Ranging Flank Array Search & Track Max Range: 74.1 km |
| EDO xxx Hull - (S-80A Suite) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search & Track Max Range: 44.4 km |
| ARIES-S - (LPI) Radar Radar, Surface Search & Navigation Max Range: 92.6 km |
| Solarsub - (Spain, 2006, FRTAS Reeling System) TASS, Passive-Only Towed Array Sonar System TASS, Passive-Only Thin Line Towed Array Sonar System Max Range: 74.1 km |
| EDO xxx Acoustic Intercept - (S-80A Suite) Acoustic Intercept (Active Sonar Warning) Acoustic Intercept Max Range: 127.8 km |
| Generic Mine & Obstacle Avoidance - (Submarine) Hull Sonar, Active-Only Hull Sonar, Active-Only Mine & Obstacle Avoidance Max Range: 0.9 km |
| Generic Photonics Mast TV/EO Component - (1.5x/24x Zoom) Visual Visual, Surveillance & Navigation TV Camera Max Range: 41.7 km |
| Generic Photonics Mast LLTV Component - (2000s/2010s, 1.5x/24x Zoom) Visual LLTV, Surveillance & Navigation Camera Max Range: 41.7 km |
| Generic Photonics Mast IR Component - (2000s/2010s, 1.5x/12x Zoom) Infrared Infrared, Surveillance & Navigation Camera Max Range: 41.7 km |
| Weapons: |
|---|
| Generic Acoustic Decoy -
(2000s, Noisemaker / Bubble Screen) Decoy (Expendable) Subsurface Max: 1.9 km. |
| DM2A4 Seehecht -
(2009, Seahake) Torpedo Surface Max: 11.1 km. Subsurface Max: 11.1 km. |
| UGM-84L Harpoon II -
Guided Weapon Surface Max: 138.9 km. Land Max: 138.9 km. |
