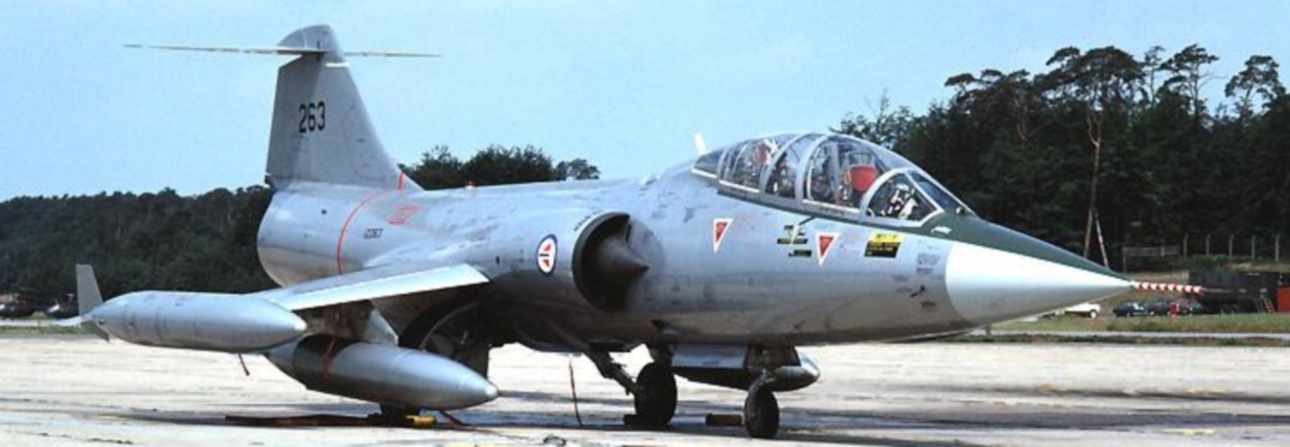

F-104G Starfighter [CF-104C] - 1978, 19x, 334 Sqn, Anti-Ship & Strike, Refitted with Gun
| General data: | |
|---|---|
| Type: Fighter | Crew: 1 |
| Min Speed: 350 kt | Max Speed: 1150 kt |
| Wingspan: 6.4 m | Height: 4.1 m |
| Length: 16.7 m | Max Payload: 1995 kg |
| Empty Weight: 6350 kg | Max Weight: 13170 kg |
| Operator: Air Force | Commissioned: 1978 |
| Propulsion: 1x J79-GE-11A | Decommissioned: 1982 |
| Sensors / EW: |
|---|
| NASAAR F-15A-41-B - (F-104G) Radar Radar, FCR, Air-to-Air & Air-to-Surface, Short-Range Max Range: 29.6 km |
| AN/ALR-46(V) - (Digital Radar Warning Receiver, Phase VI ECM Fit) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Weapons / Loadouts: |
|---|
| 170 USG Drop Tank -
Drop Tank |
| 195 USG Drop Tank -
Drop Tank |
| HYDRA 70mm Rocket -
(Mk 66 Rocket, M229 Warhead, M423/7 Fuze) Rocket Surface Max: 3.7 km. Land Max: 3.7 km. |
| Mk20 Rockeye II CB [247 x Mk118 Dual Purpose Bomblets] -
(1969, Mk7 Dispenser) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| Mk82 500lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| Mk83 1000lb LDGP -
(1954) Bomb Surface Max: 1.9 km. Land Max: 1.9 km. |
| AIM-9N Sidewinder -
(1975, AIM-9J-1) Guided Weapon Air Max: 14.8 km. |
| AGM-12B Bullpup A -
Guided Weapon Surface Max: 11.1 km. Land Max: 11.1 km. |
