| General data: | |
|---|---|

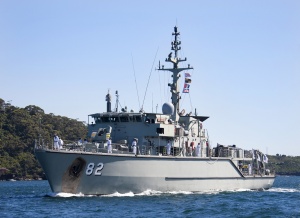

| Type: MHC - Coastal Minehunter | Max Speed: 15 kt |
| Crew: 47 | Length: 52.5 m |
| Beam: 9.9 m | Draft: 3 m |
| Displacement Full: 695 t | Displacement: 665 t |
| Operator: Navy | Commissioned: 1999 |
| Propulsion: 1x Wärtsilä NSD B230-8M Diesel |
| Sensors / EW: |
|---|
| Type 2093 - VDS, Active Only Sonar VDS, Active-Only Mine Hunting Variable Depth Sonar [Detection & Classification] Max Range: 1.1 km |
| Type 1007 - (1988, KH 1007) Radar Radar, Surface Search & Navigation Max Range: 177.8 km |
| Radamec 1500 [EO] - (Surveillance) Visual Visual, Surveillance TV Camera Max Range: 55.6 km |
| Radamec 1500 [IR] - (Surveillance) Infrared Infrared, Surveillance Camera Max Range: 55.6 km |
| Radamec 1500 [Laser Rangefinder] - (Surveillance) Laser Rangefinder Laser Rangefinder Max Range: 7.4 km |
| Mini-Dyad Magnetic Sweep - (1999, Australia) Mine Sweep, Magnetic Influence Mine Sweep, Magnetic Influence Max Range: 0 km |
| Oropesa OO Mechanical Cable Cutter Sweep - (1999, Australia) Mine Sweep, Mechanical Cable Cutter Mine Sweep, Mechanical Cable Cutter Max Range: 0 km |
| Generic Mine Disposal Diver - (80m depth) Mine Neutralization, Diver-deployed Explosive Charge Mine Neutralization, Diver-deployed Explosive Charge Max Range: 0 km |
| TSM 2022 Mk3 PVDS [Double Eagle Mk2 ROV] - (Upgraded French Tripartite, Propelled Mine-Hunting VDS) VDS, Active Only Sonar VDS, Propelled Active-Only Mine Hunting Variable Depth Sonar [Detection & Classification] Max Range: 0.9 km |
| Weapons: |
|---|
| 30mm/75 DS30B Mk1 APDS Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km. |
| 30mm/75 DS30B Mk1 HE Burst [20 rnds] -
Gun Air Max: 1.9 km. Surface Max: 2.8 km. Land Max: 2.8 km. |
| Super Barricade Chaff -
Decoy (Expendable) Surface Max: 1.9 km. |
| Super Barricade Flare -
Decoy (Expendable) Surface Max: 1.9 km. |
