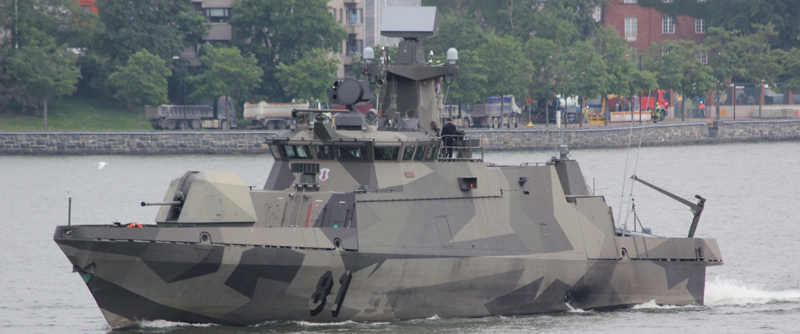

80 Hamina [Rauma 2] - 2006, Ex-74

General data:
Type: PCFG - Fast Guided Missile Patrol Craft Max Speed: 35 kt
Crew: 19 Length: 50.8 m
Beam: 8.3 m Draft: 2 m
Displacement Full: 268 t Displacement: 235 t
Operator: Navy Commissioned: 2006
Propulsion: 2x MTU 16V 538 TB93 Diesels, 2x KaMeWa 90SII Waterjets
Sensors / EW:
TRS-3D/16ES - Radar
Radar, Air & Surface Search, 3D Medium-Range
Max Range: 185.2 km
Scout Mk.2 - Radar
Radar, Surface Search & Navigation
Max Range: 44.4 km
CEROS 200 Tracker [9LV Mk3 Basic] - (Group, PE 723 Radar, 9GR400) Radar
Radar, FCR, Surface-to-Air & Surface-to-Surface, Short-Range
Max Range: 46.3 km
EOS 500 [CCD] - (Group, PE 723 Radar, 9GR400) Visual
LLTV, Weapon Director
Max Range: 185.2 km
EOS 500 [IR Camera] - (Group, PE 723 Radar, 9GR400) Infrared
Infrared, Weapon Director Camera
Max Range: 185.2 km
EOS 500 [Laser Rangefinder] - (Group, PE 723 Radar, 9GR400) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
DR 3000S2 - (ARBR 21) ESM
ELINT w/ OTH Targeting
Max Range: 926 km
Bridgemaster ARPA - (ARBR 21) Radar
Radar, Surface Search & Navigation
Max Range: 46.3 km
Matilde [Elaborate] - (Philax) ESM
RWR, Radar Warning Receiver
Max Range: 222.2 km
SS2400 Toadfish - (Norway) Hull Sonar, Active-Only
Hull Sonar, Active-Only Search
Max Range: 5.6 km
EOMS [CCD] - (Director) Visual
LLTV, Weapon Director
Max Range: 185.2 km
EOMS [IR] - (Director) Infrared
Infrared, Weapon Director Camera
Max Range: 185.2 km
EOMS [Laser Rangefinder] - (Director) Laser Rangefinder
Laser Rangefinder for Weapon Director
Max Range: 7.4 km
Weapons:
Philax Chaff - Decoy (Expendable)
Surface Max: 1.9 km.
Philax Flare - Decoy (Expendable)
Surface Max: 1.9 km.
RB 15M Mk2 - (1997) Guided Weapon
Surface Max: 148.2 km.
12.7mm/50 MG Burst [10 rnds] - (Facility/Ship, No Anti-Air Capability) Gun
Surface Max: 1.9 km. Land Max: 1.9 km.
57mm/70 Bofors Mk3 GP Burst [4 rnds] - Gun
Air Max: 2.2 km. Surface Max: 9.3 km. Land Max: 9.3 km.
