| General data: | |
|---|---|
| Type: SS - Attack/Fleet Submarine | Max Depth: -270 m |
| Commissioned: 1982 | Length: 76.7 m |
| Beam: 6.7 m | Draft: 7.5 m |
| Crew: 52 | Displacement: 1328 t |
| Propulsion: Diesels | Max Speed: 15 kt |
| Sensors / EW: |
|---|
| Snoop Plate [Flag] - Radar Radar, Surface Search, Short-Range Max Range: 46.3 km |
| China SQG-2B [DUUX 5] - (Han) Hull Sonar, Passive-Only Hull Sonar, Passive-Only Ranging Flank Array Search & Track Max Range: 74.1 km |
| China Type 921-A Golf Ball - (Submarine, Stop Light) ESM RWR, Radar Warning Receiver Max Range: 222.2 km |
| Acoustic Intercept [China H/SQZ-D] - (Type-033) Acoustic Intercept (Active Sonar Warning) Acoustic Intercept Max Range: 27.8 km |
| Generic Submarine Periscope, Optical - (1980s, 1.5x/8x Zoom) Visual Visual, Surveillance Periscope Max Range: 41.7 km |
| Generic Submarine Periscope, LLTV - (1980s/1990s, Gen 2, 1.5x/4x Zoom) Visual LLTV, Surveillance & Navigation Camera Max Range: 41.7 km |
| China H/SQZ-262A - (Type 033) Hull Sonar, Active/Passive Hull Sonar, Active/Passive Search Max Range: 7.4 km |
| Weapons: |
|---|

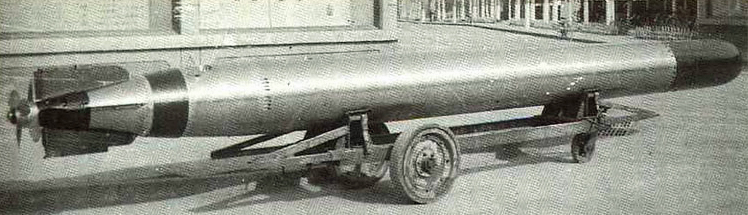

| Yu-4A -
(1985, ASuW, Submarine, ET31) Torpedo Surface Max: 5.6 km. |
